Wide frequency range from DC to 32GHz
Divided-by-2 and divided-by-4 outputs
50% duty cycle of the divided clock signals
Fully differential CML input interface
Fully differential CML output interfaces
Single +3.3V or -3.3V power supply
Industrial temperature range
Power consumption of 265mW at full operational speed
Standard MLF/QFN 24-pin package
Show all features
Frequency (min):
DC
Frequency (max):
32 GHz
Power:
265 mW
Package:
24-pin QFN
Price:
Request
Product Details

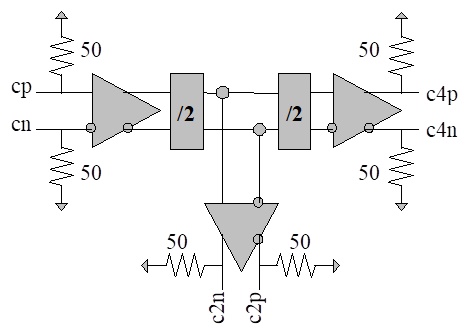

Fig. 1 Functional Block Diagram
ASNT8130-PQC is a high-speed, low-power divider by-2 and by-4 with increased sensitivity. The part shown in Fig. 1 accepts a CML input clock signal (cp/cn) with the speed from DC to maximum operational frequency and provides clean 50% duty cycle output signals with divided-by-2 (c2p/c2n) and divided-by-4 (c4p/c4n) frequency. The part’s I/Os support the CML logic interface with on chip 50Ohm termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. It operates from a single +3.3V or -3.3V power supply.
