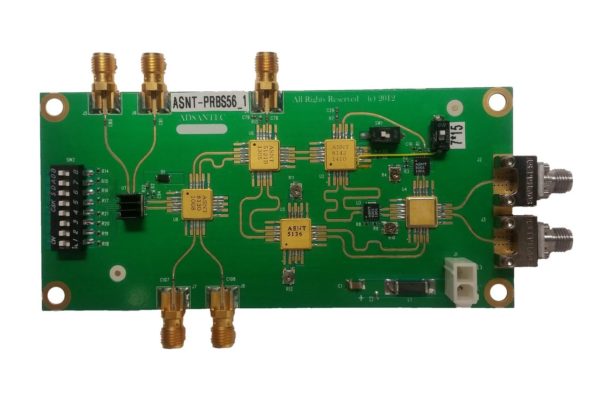

Fig. 1 Functional Block Diagram The ASNT_PRBS56_1 is a broadband 27-1 or 215-1 PRBS generator intended for test, prototyping, microwave, and communication applications. A single-ended clock from 2GHz to 26GHz is used. This single-ended Clock Input feeds a static differential Divide by 4 Output, an adjustable differential divide by 2 to 512 Sync Output, … Continue reading ASNTPRBS56_1
