ASNT8141-KMC

PRBS7 Generator w/ (x^7+x^6+1) Polynomial

Full-length (2^7-1) pseudo-random binary sequence (PRBS) generator
DC to 23Gbps output data rate
Additional output delayed by half of the sequence period
Asynchronous reset signal for elimination of the “all zeros” initial state
Fully differential CML input interface
Fully differential CML output interface with 400mV single-ended swing
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 23 Gbps
Power: 530 mW

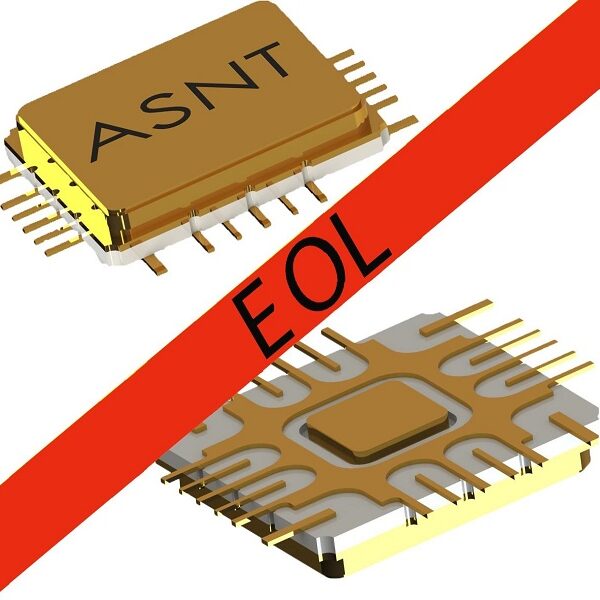

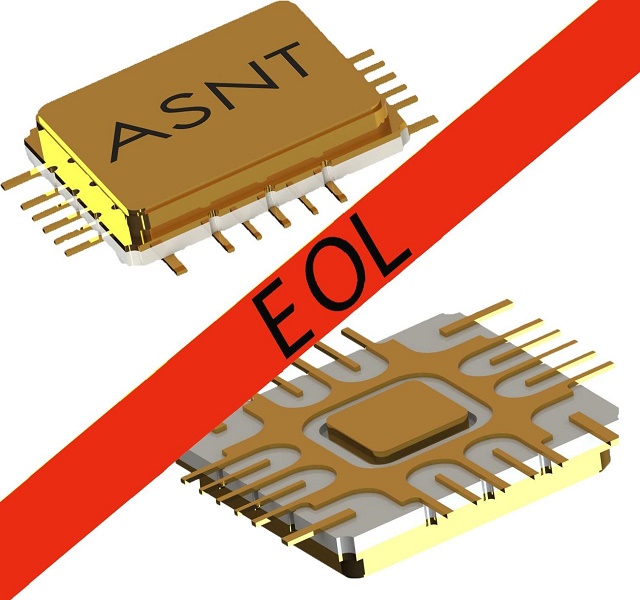

Package: 24-pin CQFP
Price: Request

Product Details

asnt8141-kmc_desc

Fig. 1 Functional Block Diagram

The ASNT8141-KMC SiGe IC provides a 127-bit full length pseudo-random binary sequence (PRBS) according to polynomial (x7 + x6 + 1), where xD represents a delay of D clock cycles. This is implemented with a linear feedback shift register (LFSR) in which the outputs of the seventh and first flip-flops are combined together by XOR function and provided as an input to the first flip-flop of the register.



The LFSR-based PRBS generator produces 127 binary states, excluding the “all zeros” state that is illegal for the XOR-based configuration. To eliminate this state that locks the LFSR and prevents the PRBS generation, an asynchronous external active-low preset signal rstn_p/rstn_n is implemented in the circuit. When the preset is asserted, LFSR is set to the “1000000” state containing one logic “1” value that is enough for the activation of the PRBS generation. When the preset is released, the chip delivers one consecutive bit of the PRBS signal to output pins qp/qn per each rising edge of clock clk_p/clk_n, starting from the above mentioned state.



An additional copy of the same PRBS signal delayed by 63 bits (half of the sequence period) is delivered to pins qxorp/qxorn and can be used to double the frequency of the output signal using an external multiplexer. All I/O stages are back terminated to vcc with on-chip 50Ω resistors and may be used in either DC or AC  coupling modes. In the first mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section of the part’s datasheet. In the second mode, the input termination provides the required common mode voltage automatically. The differential DC signaling mode is recommended for optimal performance, and the part operates from a single +3.3V or -3.3V power supply.
