ASNT7123A-KMA

16GS/s 4-bit Flash Analog-to-Digital Converter with 20GHz Input Analog Bandwidth and High Speed Outputs

20GHz analog input bandwidth
Selectable clocking mode: external high-speed clock or internal PLL with external reference clock
Broadband operation in external clocking mode: DC-16GS/s
On-chip PLL with a central frequency of 10GHz
Selectable on-chip 16Gbps PRBS 2^15-1 generator for output data scrambling
Differential CML input clock buffer and output data and clock buffers
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 16 Gbps / GHz
Power: 4620
Package: 100-pin CQFP
Price: Request

Product Details

asnt7122-kma desc

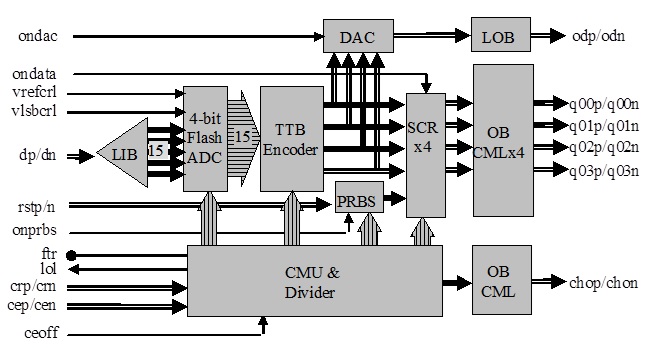

Fig. 1 Functional Block Diagram

The ASNT7123A-KMA is a 4-bit flash analog to digital converter (ADC) featuring a high sampling rate and wide analog front-end bandwidth. The ADC system shown in Fig. 1 includes a linear input buffer (LIB) with tree-type architecture and a CML-type input interface with internal 50Ohm single-ended terminations to vcc. The buffer delivers 15 matching copies of the input analog data signal dp/dn to the 4-bit flash ADC. The ADC creates 15 samples of the input data in thermometer code, which are then converted by a thermometer-to-binary encoder (TTB Encoder) into 4-bit binary words with a data rate f. TheADC thresholds are controlled by signals vrefcrl and vlsbcrl. The encoded data is processed by a scrambler (SCRx4) where it is mixed with a 215-1 PRBS signal provided by an internal PRBS generator (PRBS). The scrambled data is delivered to a 4-bit differential CML output interface (OB CMLx4, pins q00p/q00n, q01p/q01n, q02p/q02n, q03p/q03n). The PRBS generator can be preset to a certain initial state by the differential external signal rstp/rstn, or completely disabled by control signal onprbs. When disabled, the generator allows data to pass unchanged through the scrambler. It is also possible to disable the data by using control signal ondata and pass the PRBS signal to the outputs. An optional digital-to-analog converter (DAC) with an output signal odp/odn can be used to control theADC’s operation. It is enabled by control signal ondac.

All operations are synchronized by the internal clock multiplication unit (CMU) based on aPLL(phase-locked loop) with an integrated divider and an external loop filter connected to pin ftr. The block can operate in two different modes and is controlled by signal ceoff: they can either be clock multiplication (PLL is on, a reference clock is applied to pins crp/crn), or clock division (PLLis off, an external high-speed clock is applied to pins cep/cen). In both modes, the divider generates internal clock signals divided by 2, 4, 8, and 16. The generated divided clocks are sent to different internal blocks. In the second operational mode of the CMU, the divider can be preset by external signal res to allow synchronization of parallel-connected ADCs. A PLL lock control output lol is also provided. The part operates from a single +3.5V power supply. All external control signals are compatible with the 2.5V CMOS interface.
