ASNT5190B-MOD

1:2 Broadband Digital Demultiplexer w/ Duty Cycle Control

High speed broadband 1:2 Demultiplexer
External control of internal clock's duty cycle
Exhibits low jitter and limited temperature variation over industrial temperature range
Ideal for high speed proof-of-concept prototyping
Fully differential CML input interfaces
Fully differential CML output interface with 400mV single-ended swing
Show all features
Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 64 Gbps
Power: 600 mW
Package: Module
Price: Request

Product Details

asnt5190b-kmc desc

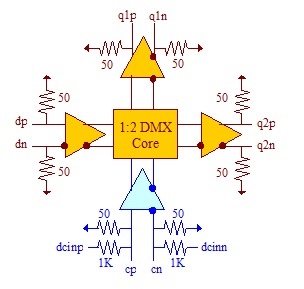

Fig. 1 Functional Block Diagram

The temperature stable ASNT5190B-MOD is a module with a SiGe IC inside. It can be utilized as a high speed 1:2 demultiplexer, and is intended for use in high-speed measurement / test equipment.  The internal IC shown in Fig. 1 can receive a high speed differential data input signal dp/dn and effectively demultiplex it into two high speed differential data output signals q1p/q1n and q2p/q2n by using a high speed differential clock input signal cp/cn.  The duty cycle of the internal clock can be adjusted through ports dcinp/dcinn.



The part’s I/Os support the CML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. In the DC-coupling mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section within the part’s datasheet. In the AC-coupling mode, the input termination provides the required common mode voltage automatically. The differential DC signaling mode is recommended for optimal performance.
