ASNT5131-PQC

Limiting Amplifier with Variable Control Amplitude (5.0V Power Supply)

Broadband (DC-17Gbps) limiting amplifier
Exhibits low jitter and limited temperature variation over industrial temperature range
100MHz of bandwidth for the amplitude adjustment tuning port
Ideal for high speed proof-of-concept prototyping
Fully differential CML input interfaces
Fully differential CML output interface with adjustable SE amplitude from 0V to 1.0V
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 17 Gbps
Power: 500 mW
Package: 24-pin QFN
Price: Request

Product Details

asnt5131-kmc-and-pqc-desc

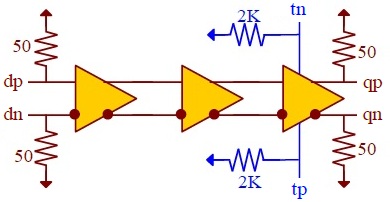

Fig. 1 Functional Block Diagram

The temperature stable ASNT5131-PQC SiGe IC provides extremely low jitter broadband signal amplitude control capability, and is intended for use in high-speed measurement / test equipment. The IC shown in Fig. 1 can process a high-speed data signal dp/dn and deliver a high-speed data output signal qp/qn with its output signal amplitude controlled by tuning ports tp/tn.

The part’s I/Os support the CML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. In the DC-coupling mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section within the part’s datasheet. In the AC-coupling mode, the input termination provides the required common mode voltage automatically. The differential DC signaling mode is recommended for optimal performance.
