ASNT5121C-KMC (1 to 3 Fanout Buffer)

Data/Clock Signal Distributor 1-to-3

High-speed broadband Data/Clock Amplifier and Distributor
Exhibits low jitter and limited temperature variation over industrial temperature range
One input differential signal port and three differential amplified output signal ports
Matched phase delays for all outputs
Fully differential CML input interfaces
Fully differential CML output interface with 400mV single-ended swing
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 50 Gbps/ 32 GHz
Power: 580 mW
Package: 24-pin CQFP
Price: Request

Product Details

asnt5121-kmc-pqc-desc

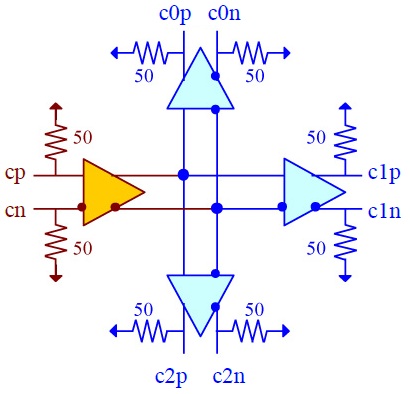

Fig. 1 Functional Block Diagram

The temperature stable ASNT5121C-KMC SiGe IC provides active broadband data/clock signal splitting, and is intended for use in high-speed measurement / test equipment. The IC shown in Fig. 1 can process a broadband high-speed data/clock input signal cp/cn and deliver three broadband high-speed data/clock phase matched output signals c0p/c0n, c1p/c1n, c2p/c2n. The part’s I/Os support the CML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. In the DC-coupling mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section within the part’s datasheet. In the AC-coupling mode, the input termination provides the required common mode voltage automatically. The differential DC signaling mode is recommended for optimal performance.
