ASNT3112-KMC (Logic Level Converter)

Dual Channel Linear Signal Level Down-Shifter

High-speed broadband level down-shifter for analog or digital signals
Fully differential input CML-type interface with on-chip single-ended 50Ohm terminations to the positive supply rail
Fully differential output CML-type interface with on-chip single-ended 50Ohm terminations to ground
Differential input linearity range up to 800mV
Differential gain of approximately 0dB
Exhibits low jitter and limited temperature variation over industrial temperature range
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 32 Gbps
Power: 1150 mW
Package: 24-pin CQFP
Price: Request

Product Details

ASNT3112-KMC desc

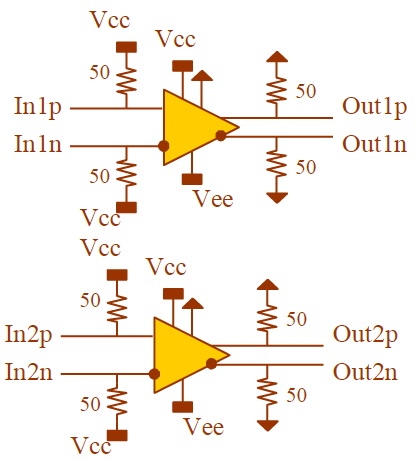

Fig. 1 Functional Block Diagram

The ASNT3112-KMC SiGe IC shown in Fig. 1 is a logic level converter that provides a voltage shift for high-speed data and clock signals from levels associated with positive power supplies to levels associated with negative power supplies.

The logic level converter’s inputs support the CML logic interface with on chip 50Ω termination to gnd and may be used differentially, AC/DC coupled, single-ended, or in any combination. In the first mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section within the part’s datasheet. In the second mode, the input termination provides the required common mode voltage automatically. The part’s outputs support the PCML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. The differential DC signaling mode is recommended for optimal performance.
