ASNT1123-PQP

4:1 Broadband Digital DDR Multiplexer

High speed broadband 4:1 Multiplexer (MUX)
Exhibits low jitter and limited temperature variation over industrial temperature range
Ideal for high speed proof-of-concept prototyping
Differential CML I/O data and clock buffers
Half-rate clock input (DDR mode)
Quarter-rate clock output
Show all features
Frequency (min): DC
Frequency (max): 32 Gbps
Power: 1150 mW
Package: 36-pin QFN
Price: Request

Product Details

ASNT1123-PQB desc

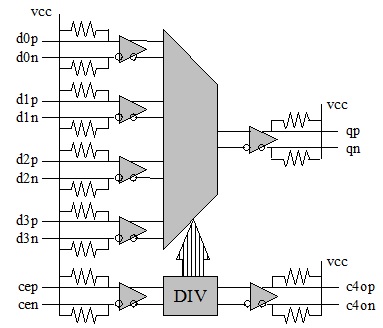

Fig. 1 Functional Block Diagram

The ASNT1123-PQP SiGe IC is a low power and high-speed digital 4 to 1 serializer-multiplexer (MUX) that functions seamlessly over data rates (fbit) ranging from DC to its maximum frequency. It’s main function is to multiplex 4 parallel differential CML data signals d0p/d0n, d1p/d1n, d2p/d2n, d3p/d3n running at a bit rate of fbit/4 into a high speed serial bit stream qp/qn running at a bit rate of fbit. Differential or single-ended half-rate clock cep/cen (DDR mode) must be provided by an external source for the part to function properly.



The serialized data words qp/qn and the clock divided-by-4 signal c4op/c4on are transmitted through CML output interfaces. The clock and data outputs are well phase-matched to each other resulting in very little relative skew over the operating temperature range of the device. All I/O stages are back terminated with on-chip 50Ω resistors and may be used in either DC or AC coupling modes. In the first mode, the input signal’s common mode voltage should comply with specifications shown in the electrical characteristics table within the part’s datasheet. In the second mode, the input termination provides the required common mode voltage automatically. Differential DC signaling is recommended for optimal performance, and the part uses a single +3.3V or -3.3V power supply.
