ASNT1122-KHC

Broadband 1 of 4 Selector / Switch

High speed broadband switch for selecting one of four inputs to a single output
Exhibits low jitter and limited temperature variation over industrial temperature range
Ideal for high speed proof-of-concept prototyping
CML compliant single ended input data interfaces
Fully differential CML output data interface
Digital control signals
Show all features
Package Footprint Data Sheet Request Quote
Frequency (min): DC
Frequency (max): 32 Gbps
Power: 300 mW
Package: 24-pin CQFN
Price: Request

Product Details

asnt1122-kmc desc

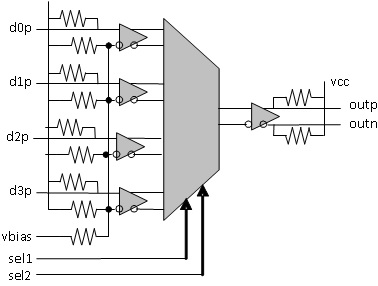

Fig.1 Functional Block Diagram

The temperature stable and broadband ASNT1122-KHC SiGe IC is a high isolation selector switch that is intended for use in high-speed measurement / test equipment. The part routes one of 4 single-ended CML inputs (d0p, d1p, d2p, d3p) to its differential CML output outp/outn while effectively blocking the other data inputs with high isolation. Selection of a specific data input is controlled by two digital control signals sel1 and sel2 in accordance with Table 1 found within the part’s dataseet. The duty cycle of the output signal is controlled by an external analog voltage vbias.



The part’s I/Os support CML logic interfaces with on chip 50Ω termination to vcc, and it may be used differentially, AC/DC coupled, single-ended or in any combination. In the first mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics table within the part’s datasheet. In the second mode, the input termination provides the required common mode voltage automatically. Differential DC signaling is recommended for optimal performance, and the part operates on a single +3.3V or -3.3V power supply.
