ASNT5079-PQC

Clock / Data Phase Shifter with Linear OB and 280ps Delay Variation

Broadband (DC-17Gbps / DC-14GHz) tunable data/clock phase shifter
Delay adjustment range of 280ps
Exhibits low jitter and limited temperature variation over industrial temperature range
1GHz of bandwidth for the phase adjustment tuning ports
Ideal for high speed proof-of-concept prototyping
Fully differential CML input interfaces
Show all features
Frequency (min): DC
Frequency (max): 14 GHz
Power: 1600 mW
Package: 24-pin QFN
Price: Request

Product Details

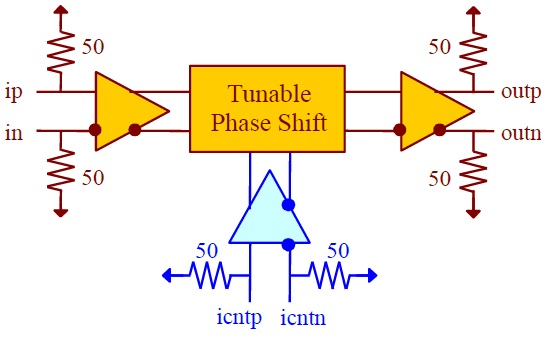

Fig. 1. Functional Block Diagram

ASNT5079-PQC is a data / clock variable delay line fabricated in SiGe technology.   The IC shown in Fig. 1 provides an adjustable delay of its differential output signal outp/outn in relation to its broadband input signal ip/in. The delay adjustment range is temperature-stabilized. The delay is controlled through a wide-band differential tuning port icntp/icntn.

The part’s I/O’s support the CML logic interface with on chip 50Ω termination to vcc and may be used differentially, AC/DC coupled, single-ended, or in any combination. In the DC-coupling mode, the input signal’s common mode voltage should comply with the specifications shown in the electrical characteristics section within the part’s datasheet. In the AC-coupling mode, the input termination provides the required common mode voltage automatically. The differential DC signaling mode is recommended for optimal performance.
